Quartz Laser Protective Lens Dia 40mm 1064nmAR Wavelength For Laser Cutting Machine

Shaanxi Ruichen Optoelectronic Technology Co., Ltd.
Contact Now

Quartz Laser Protective Lens Dia 40mm 1064nmAR Wavelength For Laser Cutting Machine

  • 1
  • 2
  • 3

Brand Name : XUCHEN

Model Number : WM-L-052

Certification : ISO.CE

Place of Origin : Shaanxi, China(Mainland)

MOQ : 10 pcs

Price : USD25/piece-USD15/piece

Payment Terms : T/T,paypal

Supply Ability : 1000 pcs/week

Delivery Time : within 5 days

Packaging Details : carton packed

Type : Quartz laser protective lens

Material : Fused Silica

Laser type : Fibre Laser

Application : Fiber Laser Cutting Machine

ey Selling Points : Competitive Price

Weight (KG) : 0.01kg

Condition : New

Spare Parts Type : Laser Head Consumables

Contact Now

Quartz laser protective lens Dia 40mm 1064nmAR wavelength for laser cutting machine

Description

Laser protective glasses are very important precision parts in the optical system of laser cutting machines. The cleanliness of the lens has a great influence on the processing performance and quality of the laser cutting machine.
Laser protective glasses play an important role in the laser system. They can change the laser light path, depending on the refraction of the lens

Parameter:

Name: laser protective lens

Diameter:40*3mm

Material:Imported Quartz JGS1

Surface quality:40/20

Clear Aperture:<80%

Transmittance:99.9%

Parallelism:<1 min

Diameter tolearance:+0/-0.1mm

Thickness tolearance:±0.1mm

Advantages:

1. Our company has a wide variety of laser protective lenses and sufficient inventory to meet the needs of our customers; it has the characteristics of high anti-damage threshold, low residual reflection, low scattering, and low absorption.
2. The product is made of high-quality substrates through slicing, rounding, polishing, polishing, coating and other processes; the two sides of the protective lens are coated with high anti-reflective film, which is stable and durable.
3. Other standard maintenance lenses are readily available, with complex varieties. Welcome to consult!
How to install the lens ?
1. Loose the two screws with hand and take out the lens drawer.
2. Sealing the window immediately to protect it from the ash.
3. Check the sealing ring , if theres any deformation gap, then replace it
4. Install the new lens , ensure the sealing ring is beneath the lens
Cautions: Must keep the lens and sealing ring totally clean

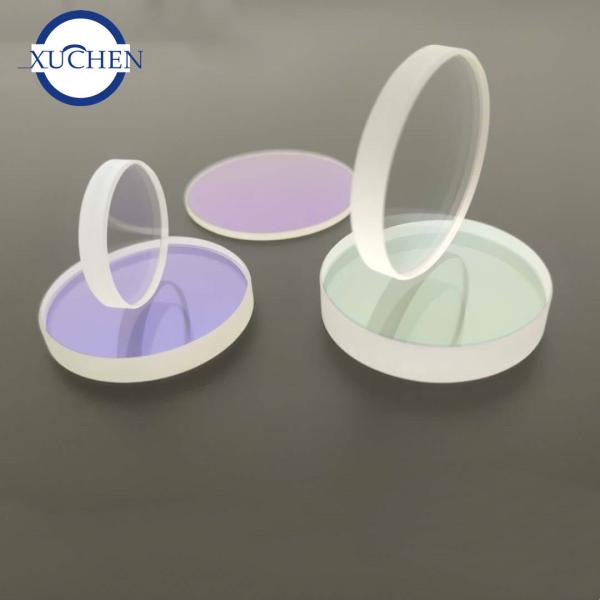

Photo:

Quartz Laser Protective Lens Dia 40mm 1064nmAR Wavelength For Laser Cutting Machine

Quartz Laser Protective Lens Dia 40mm 1064nmAR Wavelength For Laser Cutting Machine
